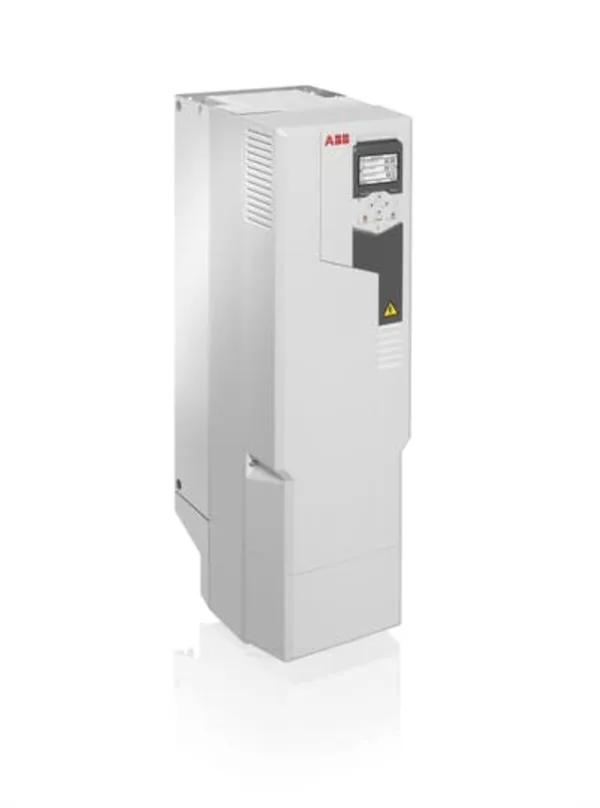

ACS580-01-106A-4
4.894 €
LV AC general purpose wall-mounted drive, IEC: Pn 55 kW, 106 A, 400 V (ACS580-01-106A-4)
General Information
Global Commercial Alias: ACS580-01-106A-4
Product ID: 3AUA0000080503
ABB Type Designation: ACS580-01-106A-4
EAN: 6438177305590
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 55 kW, 106 A, 400 V (ACS580-01-106A-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Ordering
Country of Origin: Finland (FI)
Customs Tariff Number: 85044086
HS Code: 850440– Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description: ACS580-01-106A-4 PN: 55 kW, IN: 106 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Dimensions
Product Net Weight: 62.391 lb
Product Net Depth / Length: 11.61 in
Product Net Height: 28.82 in
Product Net Width: 7.99 in
Package Level 1 Depth / Length: 835.00 mm, 32.874 in
Package Level 1 Height: 521.00 mm. 20.512 in
Package Level 1 Width: 295.00 mm, 11.614 in
Package Level 1 Units: 1 carton
Technical
Number of Phases: 3
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 1000 m
Operating Humidity (RHamb): 5 … 95
Sound dB (A): 63 dB(A)
Multiple Battery Information: Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f): 47.5 … 63 Hz
Frame Size: R5
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted
Communication Protocol: TCP/IP
Number of Hardware Interfaces: Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes: Control unit, PC connection
Analog Inputs: 2
Analog Outputs: 2
Number of Digital In/Outputs: 6 / 3
Output Current, Normal Use (In): 106 A
Output Current, Light-Overload Use (ILD): 100 A
Output Current, Heavy-Duty Use (IHD): 87 A
Output Power, Normal Use (Pn): 55 kW
Output Power, Light-Overload Use (PLD): 55 kW
Output Power, Heavy-Duty Use (PHD): 45 kW
Apparent Power Output: 73 kV·A
Efficiency Level: IE2
Standby Loss: 24 W
Complete Drive Module Efficiency (61800-9-2):
| Operating Point Frequency / Current |
Absolute Loss |
Efficiency | Relative Loss |
|---|---|---|---|
|
0/25 %
|
325 W
|
92.5 %
|
0.4 %
|
|
0/50 %
|
449 W
|
94.5 %
|
0.6 %
|
|
0/100 %
|
864 W
|
94.6 %
|
1.2 %
|
|
50/25 %
|
359 W
|
95.9 %
|
0.5 %
|
|
50/50 %
|
521 W
|
96.8 %
|
0.7 %
|
|
50/100 %
|
1023 W
|
96.9 %
|
1.4 %
|
|
90/50 %
|
606 W
|
97.9 %
|
0.8 %
|
|
90/100 %
|
1290 W
|
97.8 %
|
1.8 %
|
Temperature Rating: Maximum 40 °C, Minimum -15 °C
External Classifications and Standards
ETIM 8: EC001857 – Frequency converter =< 1 kV
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
Environmental
SCIP: 24d7f559-8ddc-4469-93c7-ad912823d754 Finland (FI)
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
| Weight | 37 kg |
|---|---|
| Dimensions | 74 × 21 × 30 cm |
| Manufacturer | ABB |
