LOGO! 24CEo, logic module, without display, PS/I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DQ, memory 400 blocks, modularly expandable, Ethernet, integr. web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable, cloud connection in all LOGO! 8.3 basic units.

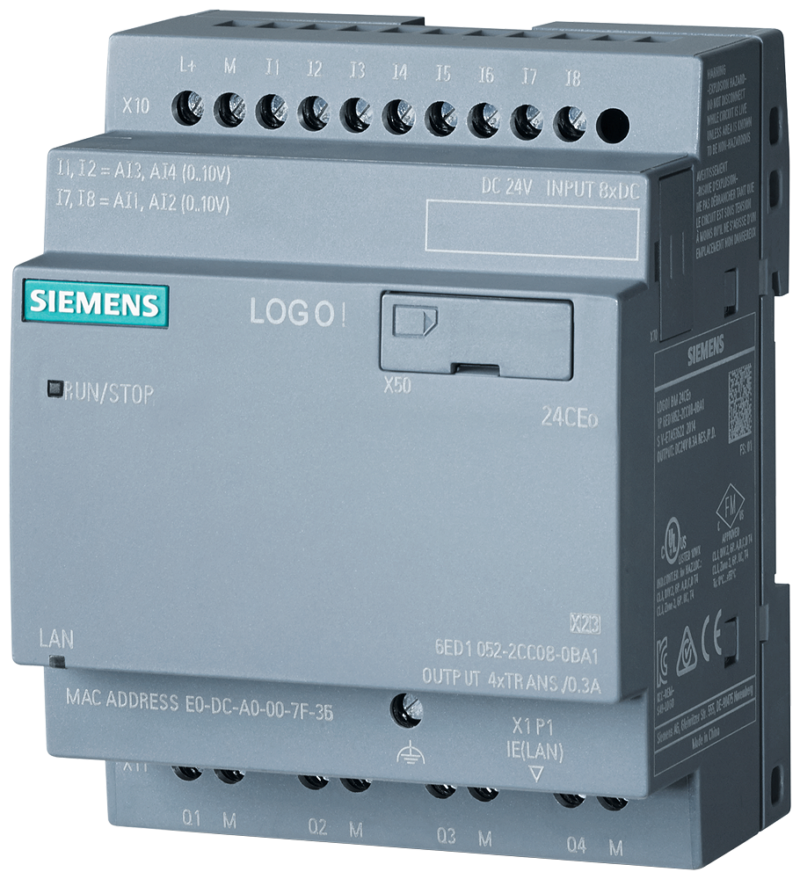

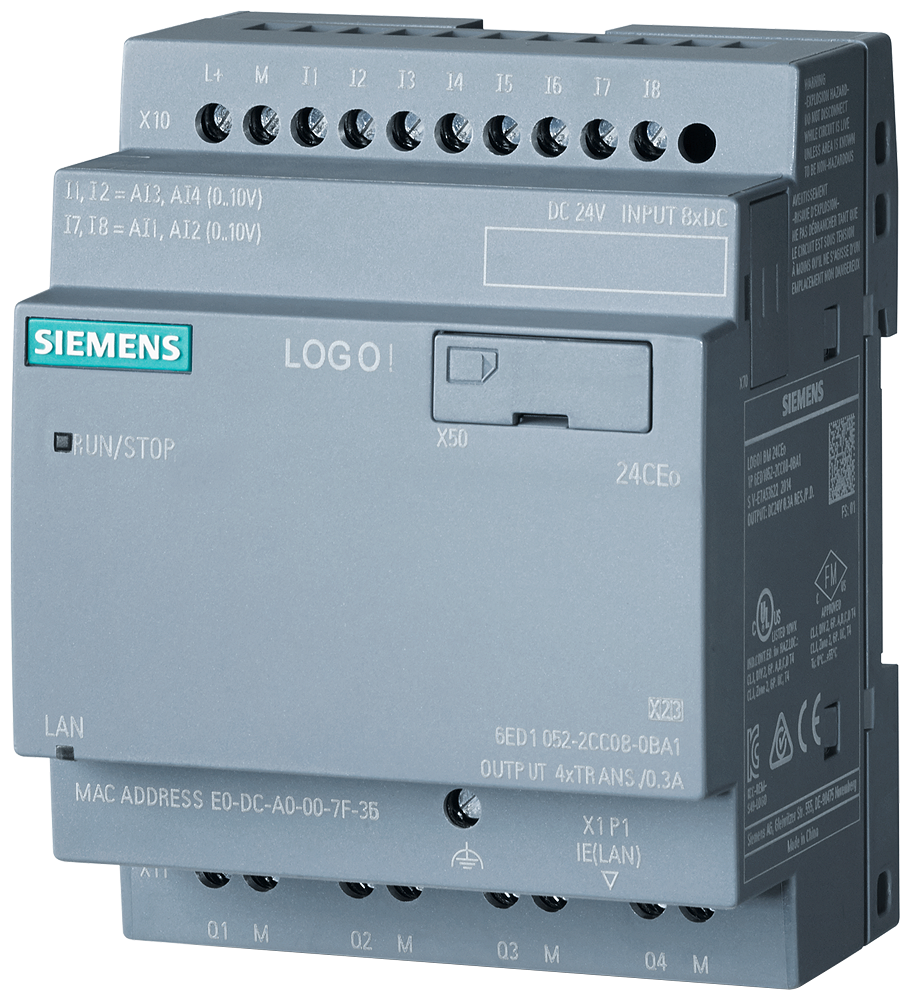

The 6ED1052-2CC08-0BA1 is a LOGO! 24CEo logic module from Siemens. It is a compact and modular device designed for automation and control applications.
Key Features:
- No display: It lacks a built-in display for basic configuration and monitoring.
- Power Supply: It operates with a 24 V DC power supply.
- I/O: It offers 8 digital inputs (4 of which can be used as analog inputs) and 4 digital outputs.
- Memory: It has a memory capacity of 400 blocks for storing program logic and data.
- Modular expandability: It can be expanded with additional input/output modules to increase its functionality.
- Ethernet: It supports Ethernet communication for networking and remote access.
- Integrated web server: It has a built-in web server for configuration and monitoring via a web browser.
- Data logging: It can log data for analysis and troubleshooting.
- User-defined web pages: It allows you to create custom web pages for specific applications.
- MicroSD card support: It uses a standard microSD card for storing LOGO! Soft Comfort projects.
- Compatibility: It can run older LOGO! Soft Comfort projects (version 8.3 or higher).
- Cloud connection: All LOGO! 8.3 basic units support cloud connectivity for remote access and data management.
Overall, the 6ED1052-2CC08-0BA1 is a versatile and scalable logic module that offers a wide range of features for automation and control applications.
| Product | |
| Article Number | 6ED1052-2CC08-0BA1 |
| Product Description | LOGO! 24CEo, logic module, without display, PS/I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DQ, memory 400 blocks, modularly expandable, Ethernet, integr. web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable, cloud connection in all LOGO! 8.3 basic units |
| Product family | Not available |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| PLM Effective Date | Product discontinued since: 02.05.2024 |
| Notes | Product is no longer available. Successor: |
| 6ED1052-2CC08-0BA2Â Compare Products | |
| Successor information | |
| Successor | 6ED1052-2CC08-0BA2 |
| Successor Description | LOGO! 24CEo, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable, cloud connection, MQTT in all LOGO! 8.4 basic units |
| Delivery information | |
| Export Control Regulations | ECCN : 9N9999 / AL : N |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,192 Kg |
| Packaging Dimension | 8,00 x 9,30 x 7,00 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4034106033675 |
| UPC | 195125091580 |
| Commodity Code | 85371091 |
| LKZ_FDB/ CatalogID | STLOGO! |
| Product Group | 4071 |
| Group Code | R131 |
| Country of origin | China |
| Compliance with the substance restrictions according to RoHS directive | Since: 30.09.2020 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w) |
| Lead monoxide (lead … CAS-No. 1317-36-8 > 0, 1 % (w / w) | |
| 2,2′,6,6′-tetrabromo… CAS-No. 79-94-7 > 0, 1 % (w / w) | |
| SCIP number | 22a9ce90-4aa2-424f-8c07-a0584afd2e5d |
| Weight | 0,2 kg |
|---|---|
| Dimensions | 8 × 10 × 7 cm |
| Manufacturer | Siemens |
